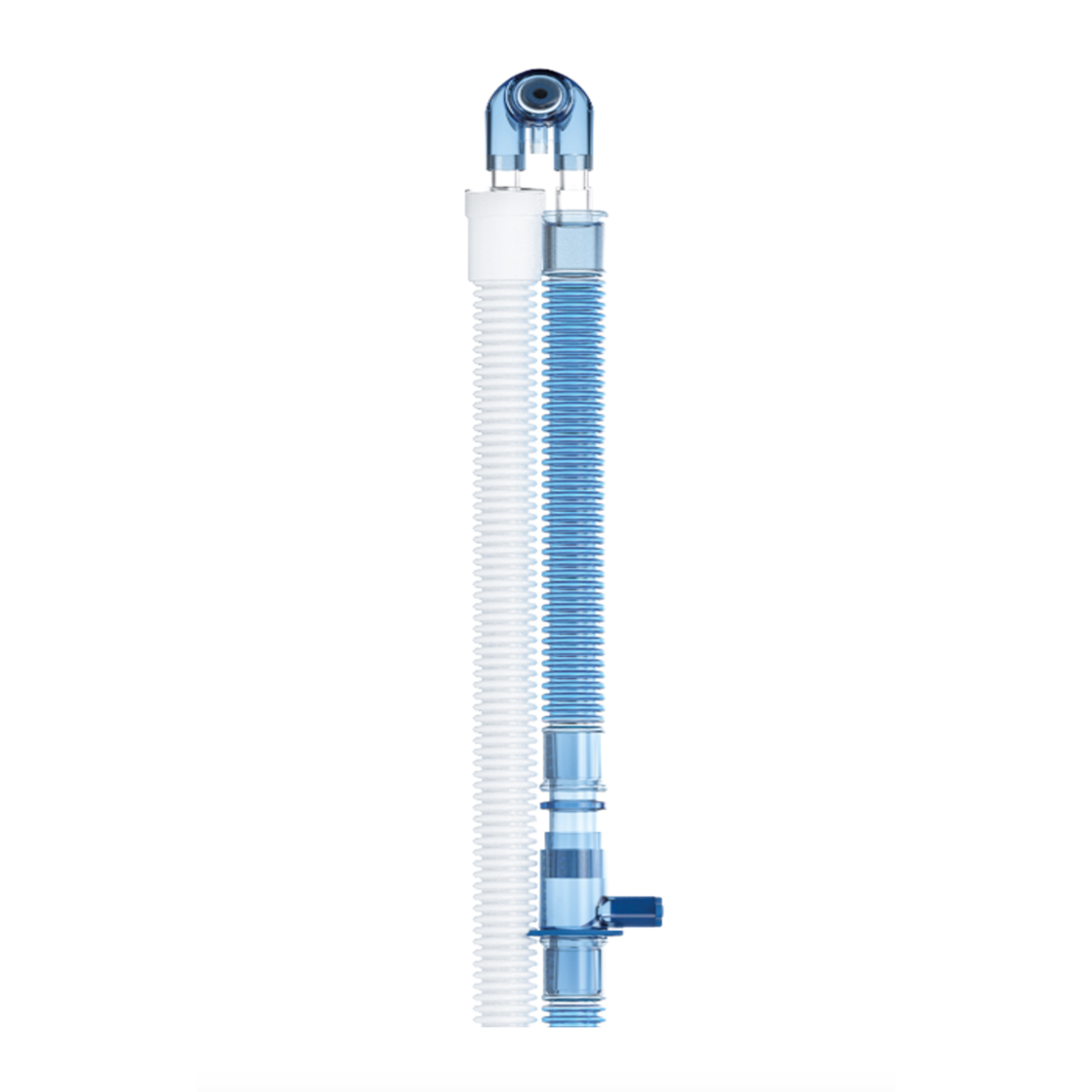

Flexicare Ventimyst® Ventilation System
Item CodeFC3224-27
Ventilator Breathing Systems with Advanced Active Humidification delivers absolute humidity and manages excess rain-out.
Features
- Effective Moisture Management The VentiMyst® technology reduces the build up of rain-out.
- Reduced Patient Risk Reduced risk of accidental drainage of rain-out into the patient's airway.
- Double Valve Auto-Fill Chamber Two independent floats and primary and secondary valves regulate water flow into the chamber and provide assured protection against overfilling.
- Clinical Confidence Reduced need to open or break the circuit with associated loss of PEEP and de-recruitment of the lungs.5
- Low Compliance Tubing Accurate delivery of gas volumes and ventilation pressures to the patient.
- Temperature Transfer Efficiency Helps prevent gas temperature loss and surface cold spots, minimising rain-out.
Product Range
| Adult Ventimyst® | |
|---|---|

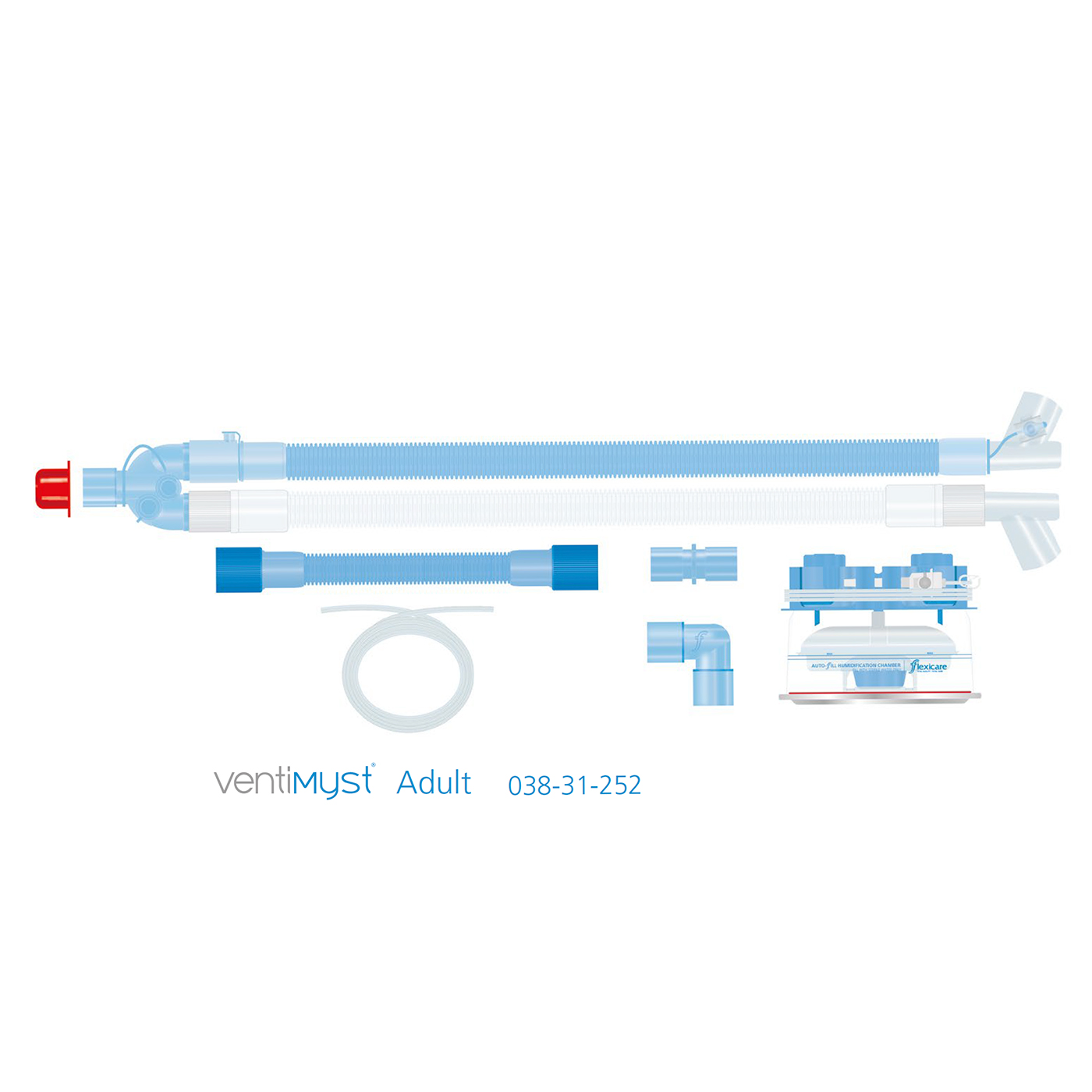

| Adult Dual Heated Wire with Pressure Line - Kit 1 Adult 22mm Dual Heated Wire Breathing System 1.6m, VentiMyst Corrugated Expiratory Limb, Y-Piece with MDI Port and Pressure Port, 0.5m Limb, Pressure Line, 22M/22M,15F Connector, 22F/22M Elbow & Auto-Fill Chamber |
038-31-252 |
| Adult Dual Heated Wire without Pressure Line - Kit 2 As above without Pressure Line |
038-31-253 |
| Neonatal Ventimyst® | |

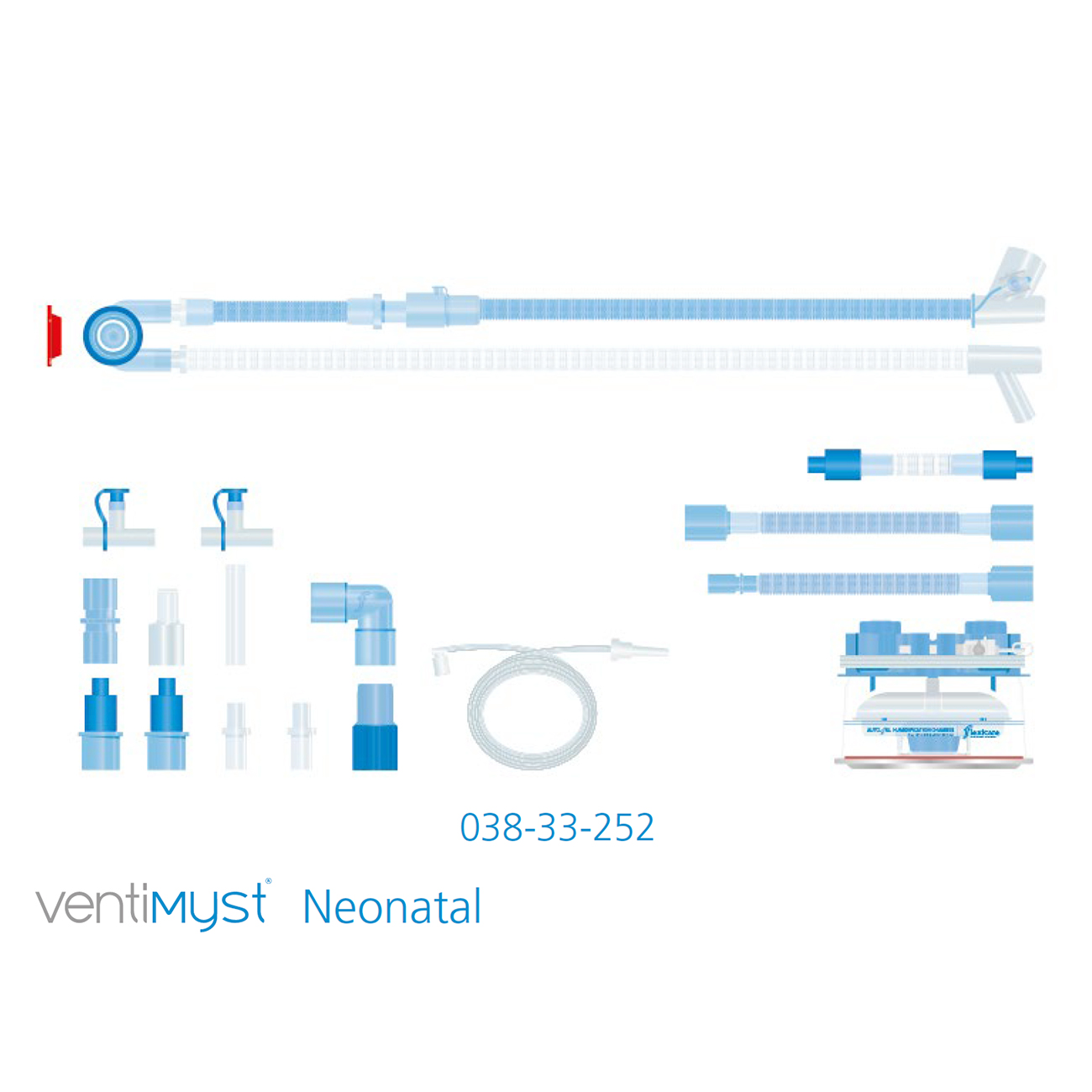

| Neonatal Dual Heated Wire with Auto-Fill Chamber - Kit 1 Neonatal 15mm Dual Heated Wire Breathing System 1.6m, VentiMyst Corrugated Expiratory Limb, Y-Piece with Suction Port, 0.3m Incubator Extension 15mm, 8M/8F Ported T-Pieces, 22M/22M,15F Connector, 8M/15M Connector, Adapter Tube, 22F/22M Elbow, 9-11F/22M,15F Connectors, 10M,8F/15M,11F Connectors, 15F/22F Heated Wire Adapter, Detachable Pressure Line, 0.15m Limb 9-11F/9-11F, 0.6m Limb 22F/22F, 0.6m Limb 15M,11F/22F & Auto-Fill Chamber |
038-33-252 |
| Neonatal Dual Heated Wire without Chamber - Kit 2 As above without Humidification Chamber |
038-33-253 |
| Neonatal Dual Heated Wire for SLE Ventilator with Auto-Fill Chamber - Kit 1 Neonatal 15mm Dual Heated Wire Breathing System 1.6m, VentiMyst Corrugated Expiratory Limb, Y-Piece with Suction Port & Fixed Pressure Line, 0.3m Incubator Extension 10mm, 22M/22M,15F Connector, 8M/8F Ported T-Piece, 22F/22M Elbow, 15M-22M/15F Connectors, Red & Amber Flow Restrictors, 0.15m Limb 9-11F/9-11F, 0.6m Limb 9-11F/22F, 0.6m Limb 15M,11F/22F & Auto-Fill Chamber |
038-33-252/S |
| Neonatal Dual Heated Wire for SLE Ventilator without Chamber - Kit 2 As above without Humidification Chamber |
038-33-253/S |
